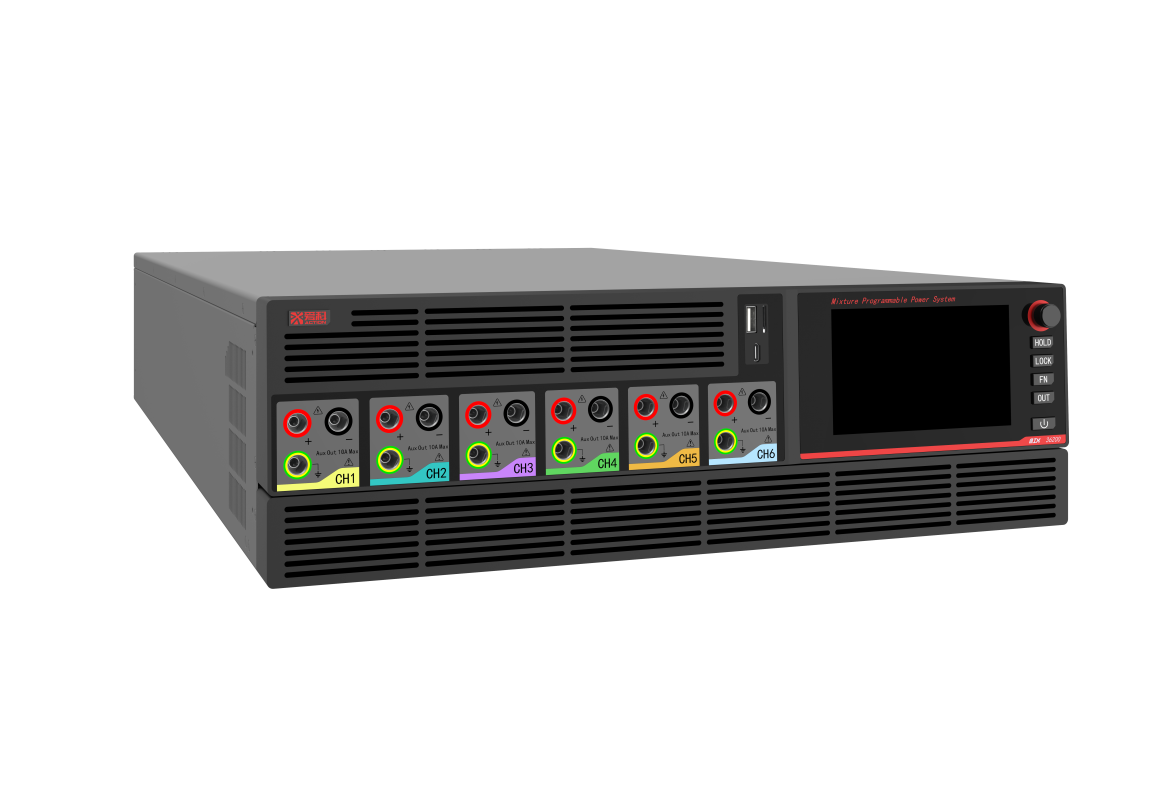

HELION SERIES

Modular Multi-Channel Power Supply

Unprecedented Module-Based Multi-Channel Testing Equipment

The unprecedented multi-channel power supply of HELION series features arbitrary configuration of AC and DC combination through 6 channels and fast-swap modular design that allow users to set up power testing environment with quick installation and fast-changeover features by replacing simply AC/DC modules in a plug-and-play manner facilitated by integrated automatic system identification functions.

HELION Series Modular Multi-Channel Power Supply performs dynamic and characteristics power testing capability with an accuracy of 0.01%士0.05%F.S. @ AC power and 0.02%士10mV @ DC power, backed by high accuracy voltage and current measurement devices and micro-processor for digital signal, meanwhile offering a compact footprint with power density of 9.9kW/3U.

Highlighted Features

- Quick Swap Module Design: Supports plug-and-play quick installation, enabling flexible replacement of AC/DC modules. The system automatically identifies the power module type

- Multi-Channel Architecture 6 hybrid channels within a compact 3U footprint, offering flexible configurations to support common test topologies such as AC/AC, AC/DC, DC/AC, and DC/DC

- High-Precision Output: Utilizes advanced digital control technology to deliver high-accuracy, low-ripple voltage and current output, ensuring reliable test results

- Versatile Communication Interfaces: Built-in USB, LAN, and optional RS232/RS485 interfaces, supporting SCPI/MODBUS command sets for seamless integration into automated test systems, enabling remote control and monitoring

- Bidirectional Power Flow: AC/DC modules feature energy feedback capability

- Web-Based Control: Supports web control functionality, allowing power supply operation and monitoring via standard browsers

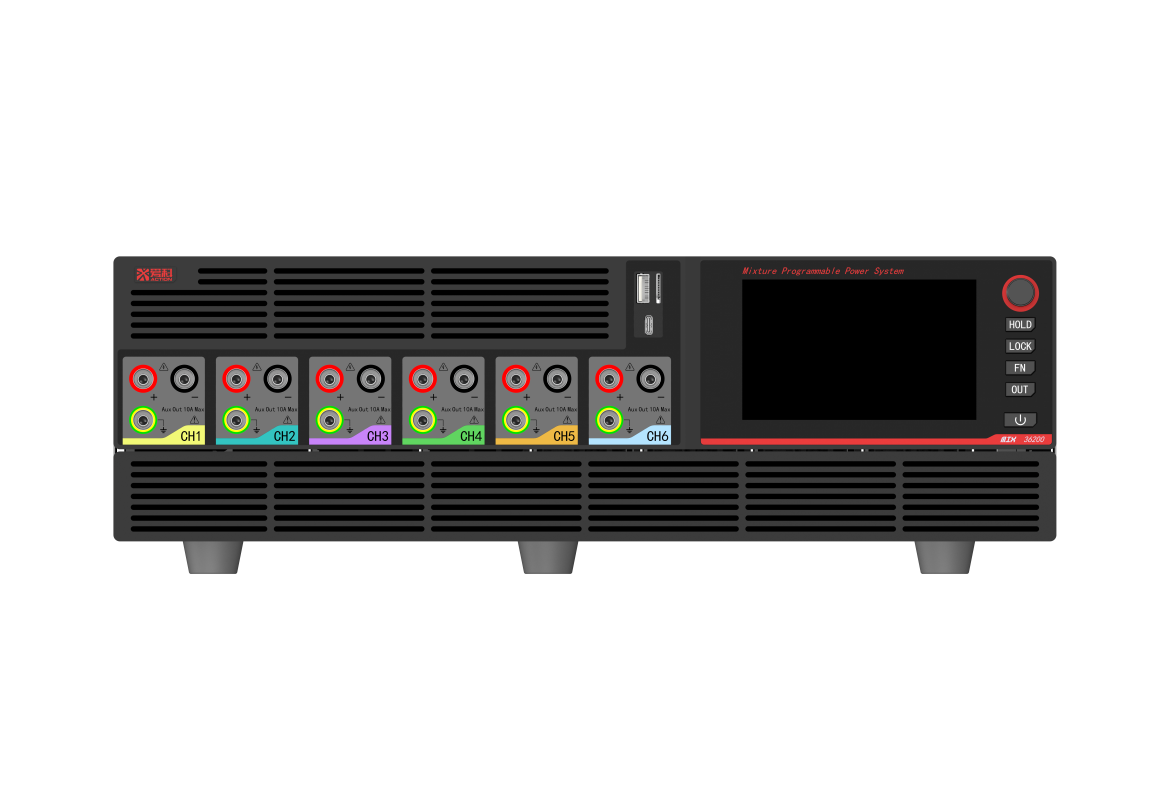

- Front-Panel Convenient Outputs: All six front-panel channels support banana plug connections for currents up to 10A
