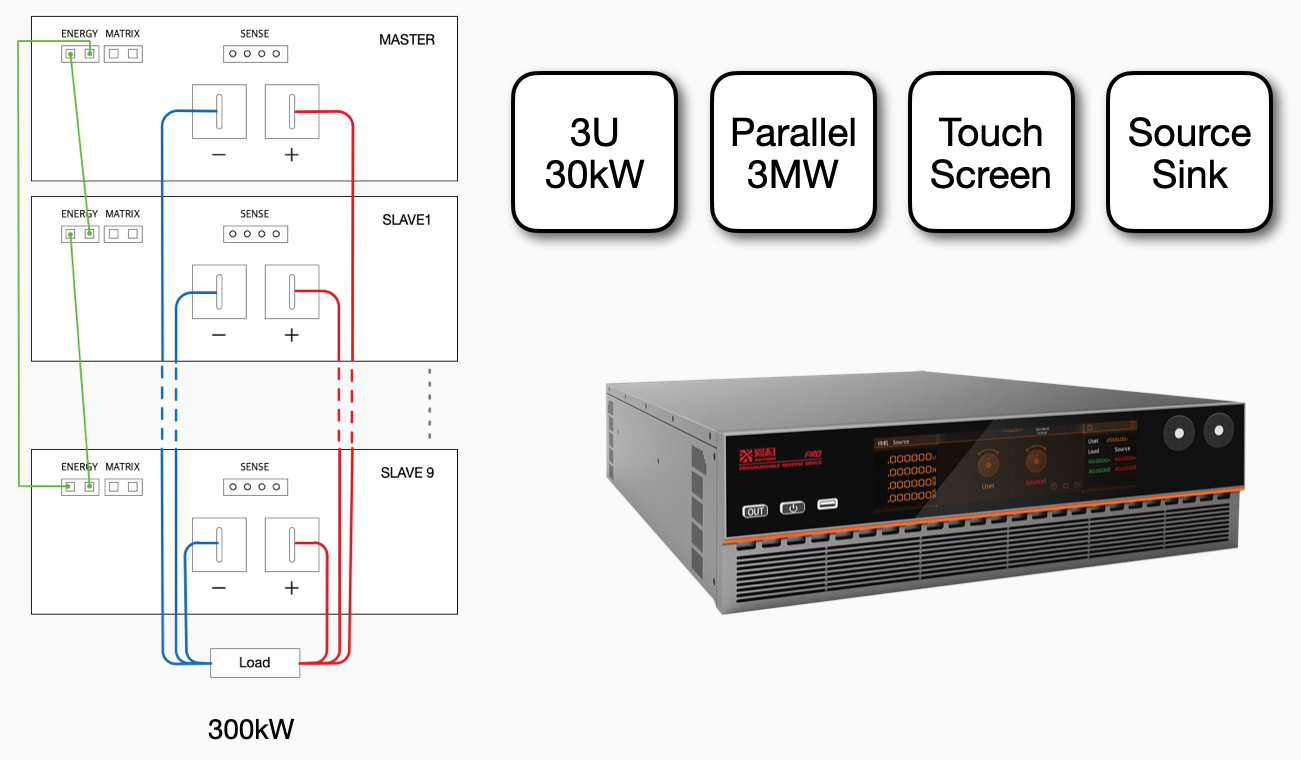

Modular and Scalable Design
The PRD series usesthe DMPS (Distal Matrix Parallel System) for high-performance and stable power supply 3MW. In particular, the PRD model has a redundancy function to prevent the system from stopping in the event of a failure. This allows the system to continue to operate even if the master module and other slave modules fail, thereby increasing reliability and stability and minimizing system down-time.

Anti-islanding test function

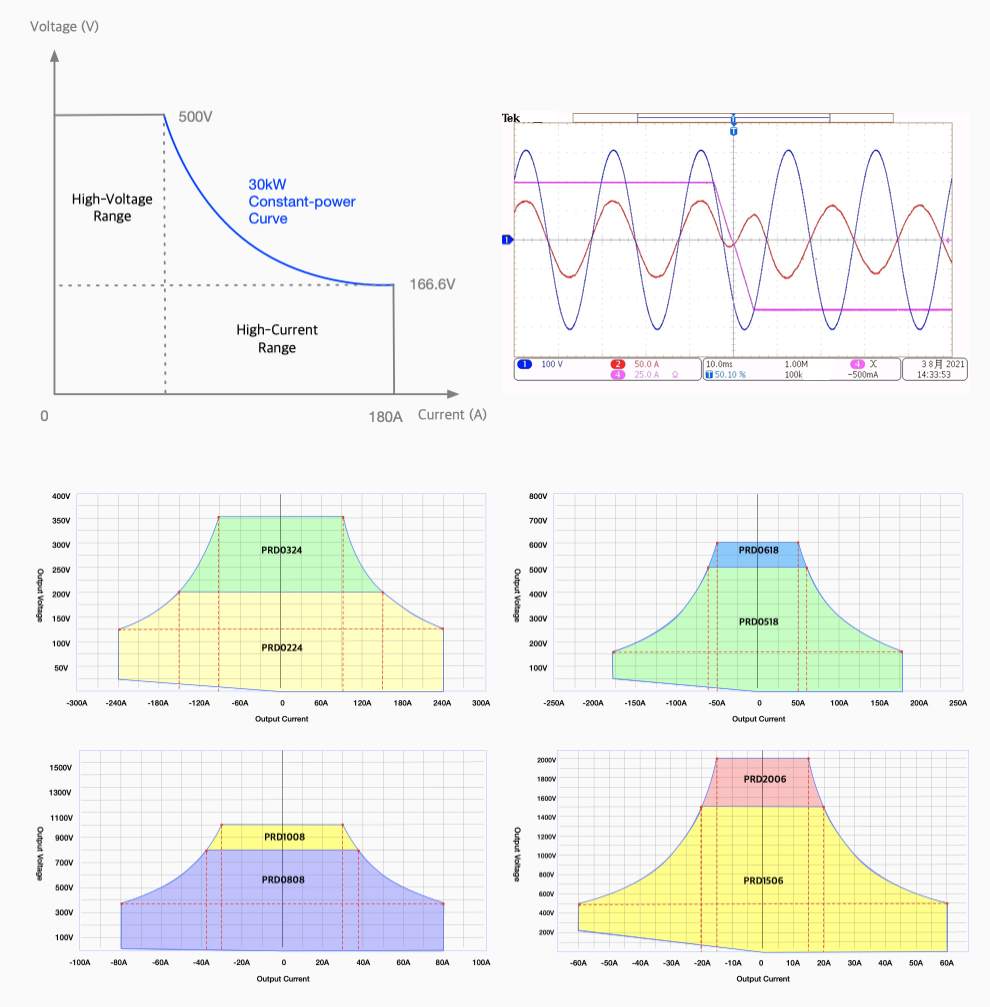

Auto ranging function automatically provides a wide output range of voltage and current through a programmable DC power supply, and can maintain the rated output over a wide operating range. This allows the available voltage to be higher as the required current is lowered, and higher current is possible at low voltages, allowing DUT testing under various voltage/current conditions with a single DC power supply.

In addition, the PRD series supports smooth and very fast automatic switching through the bidirectional Automatic "source" & "load" function. It effectively controls the voltage or current overshoot without delay in switching between the two states of source and load.
